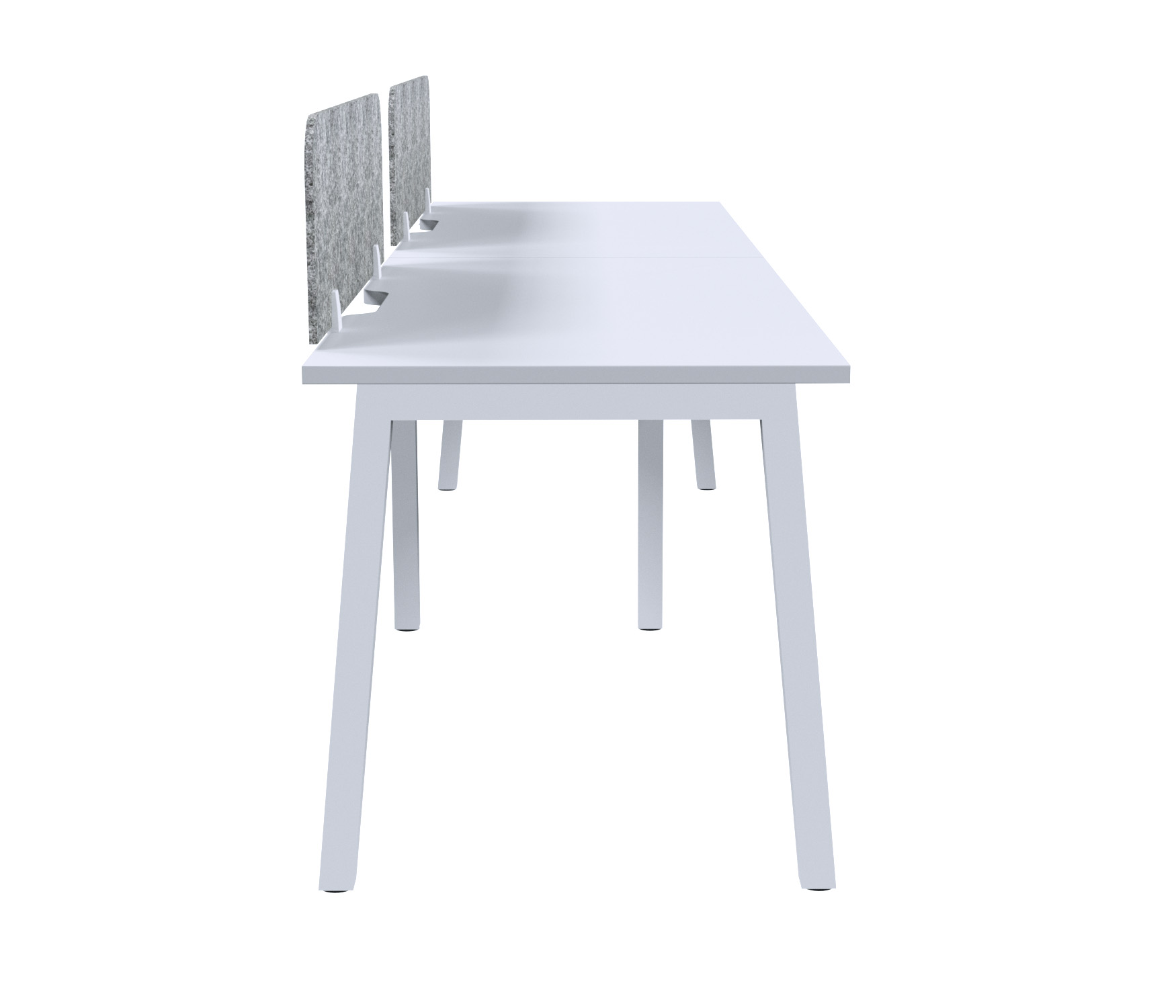

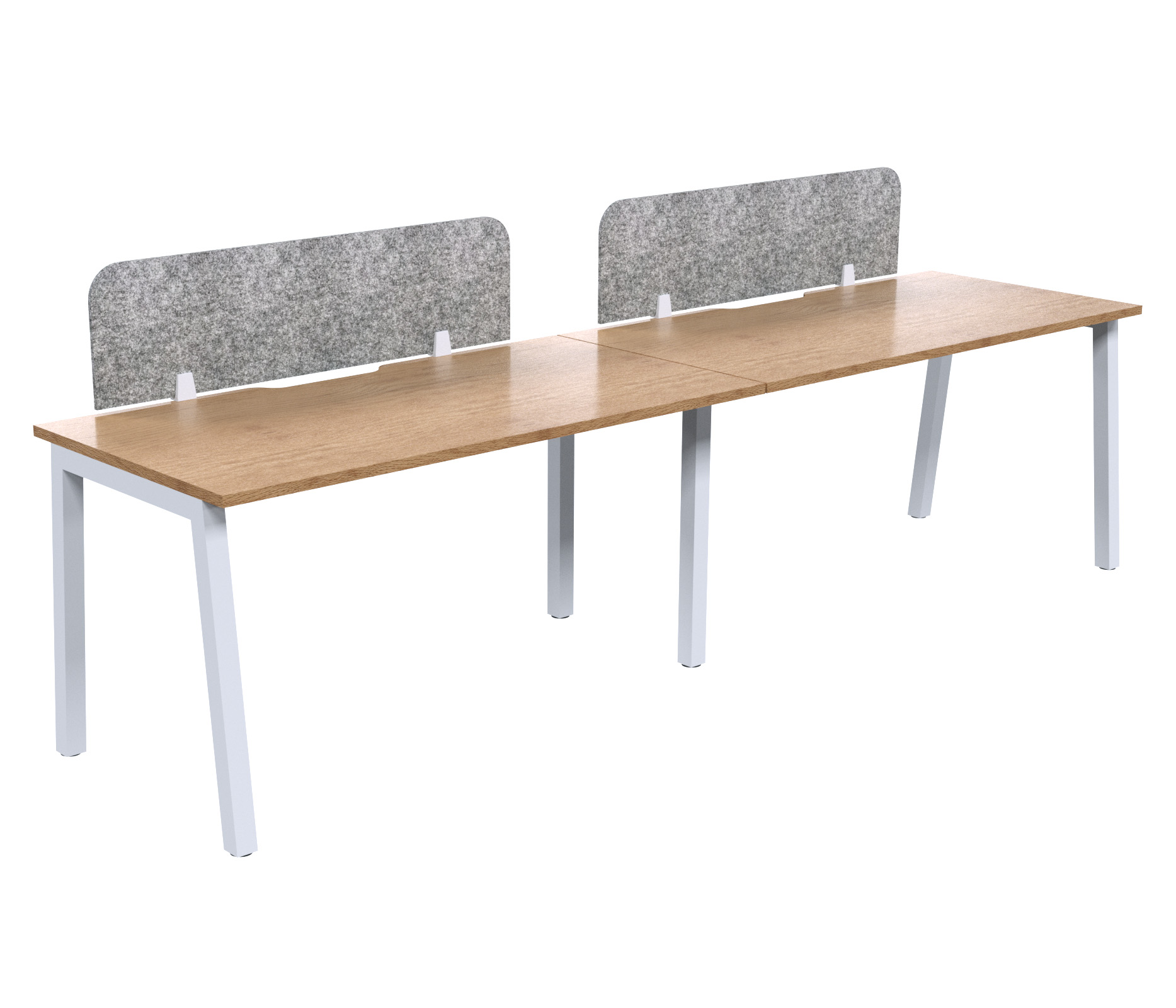

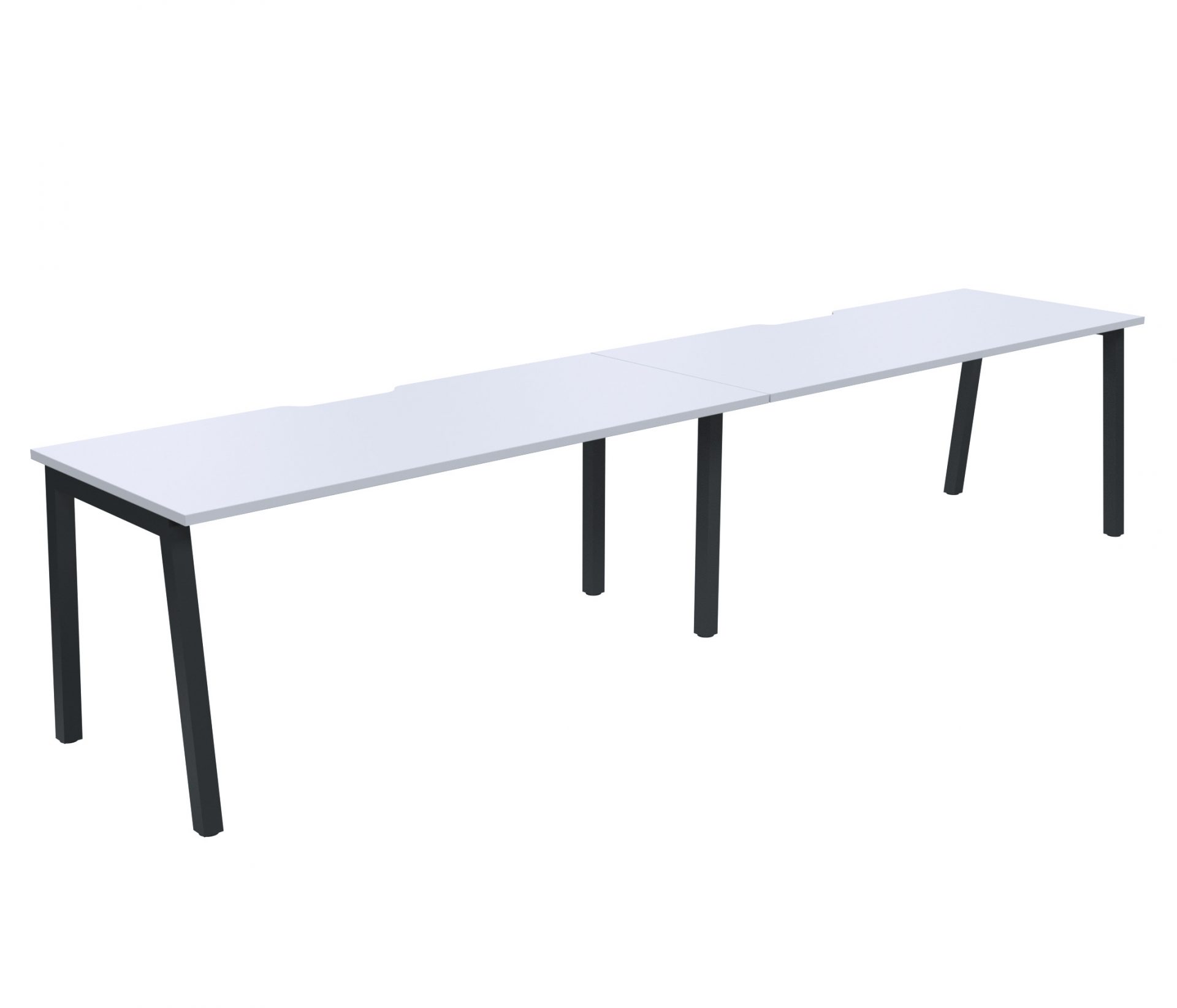

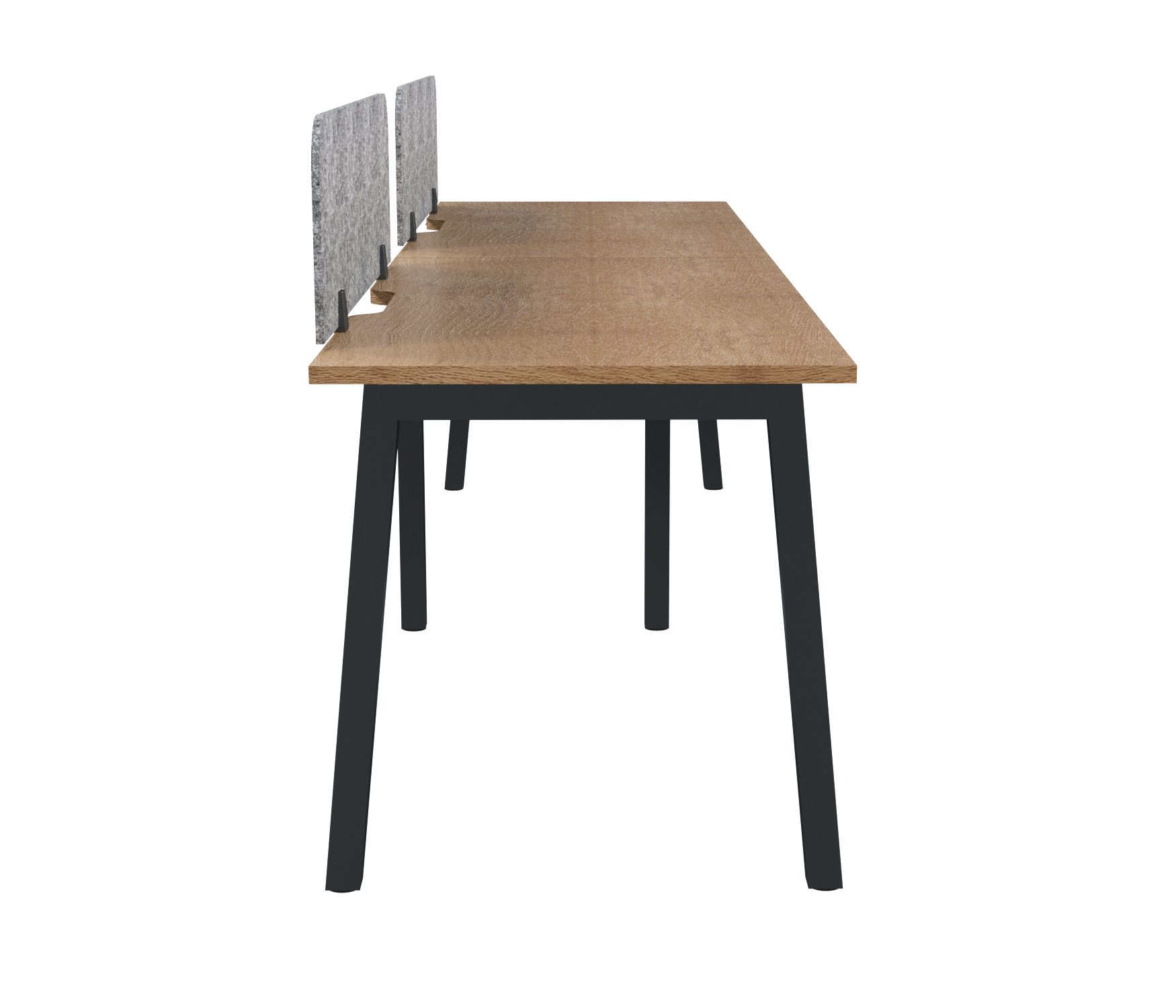

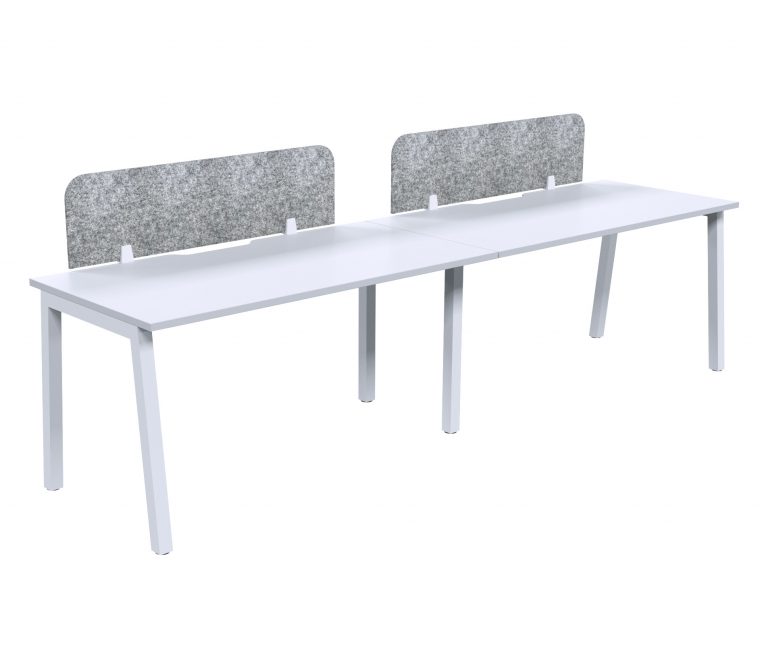

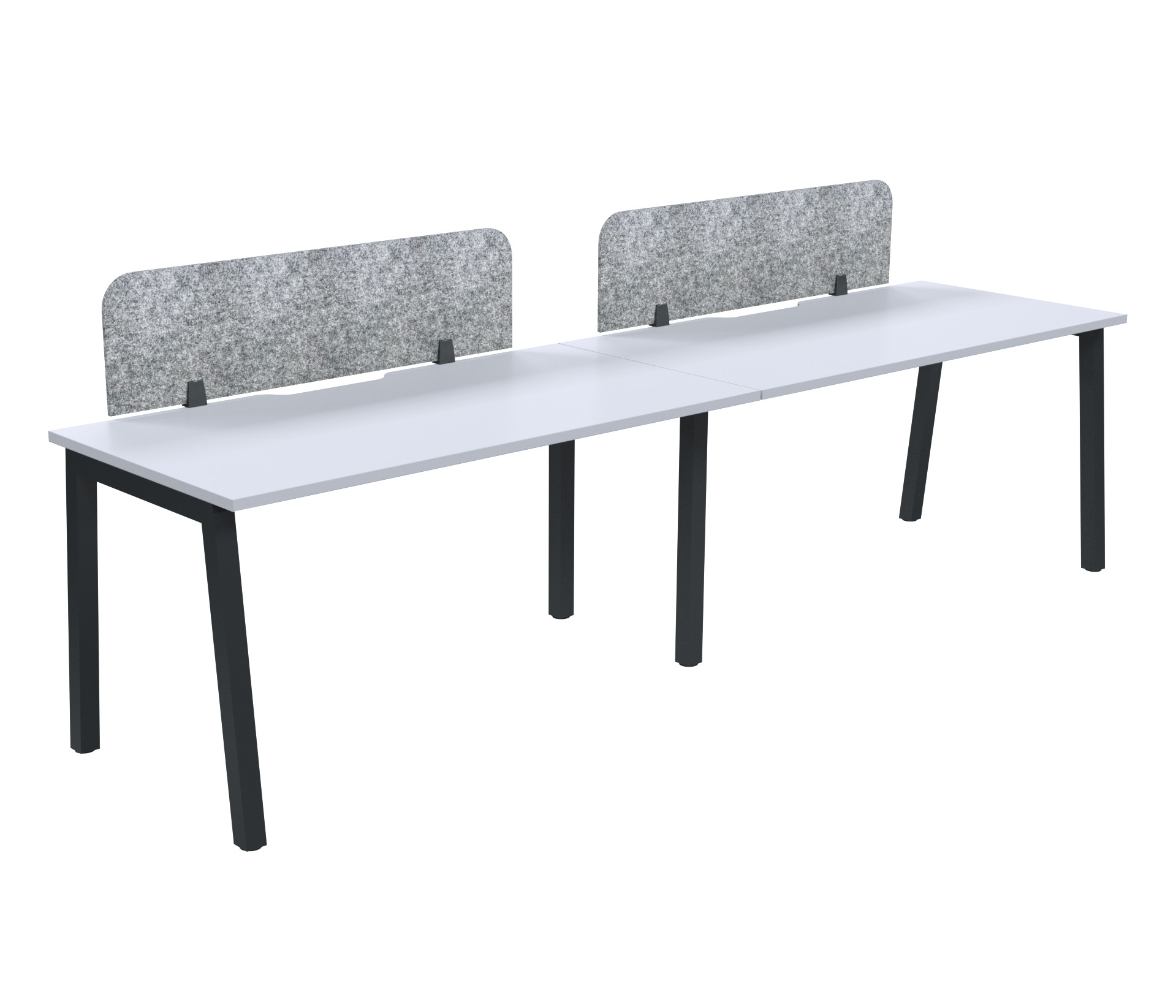

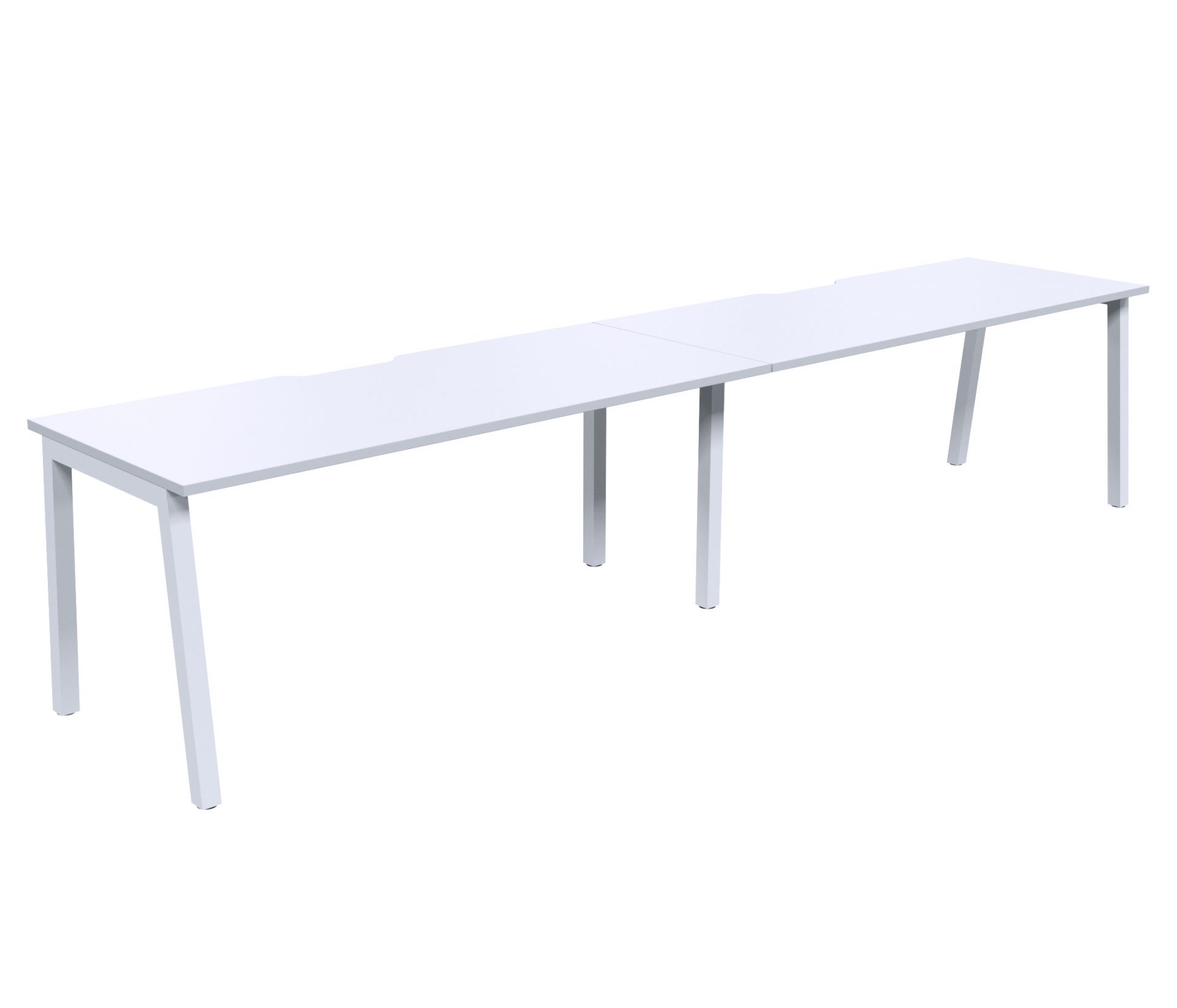

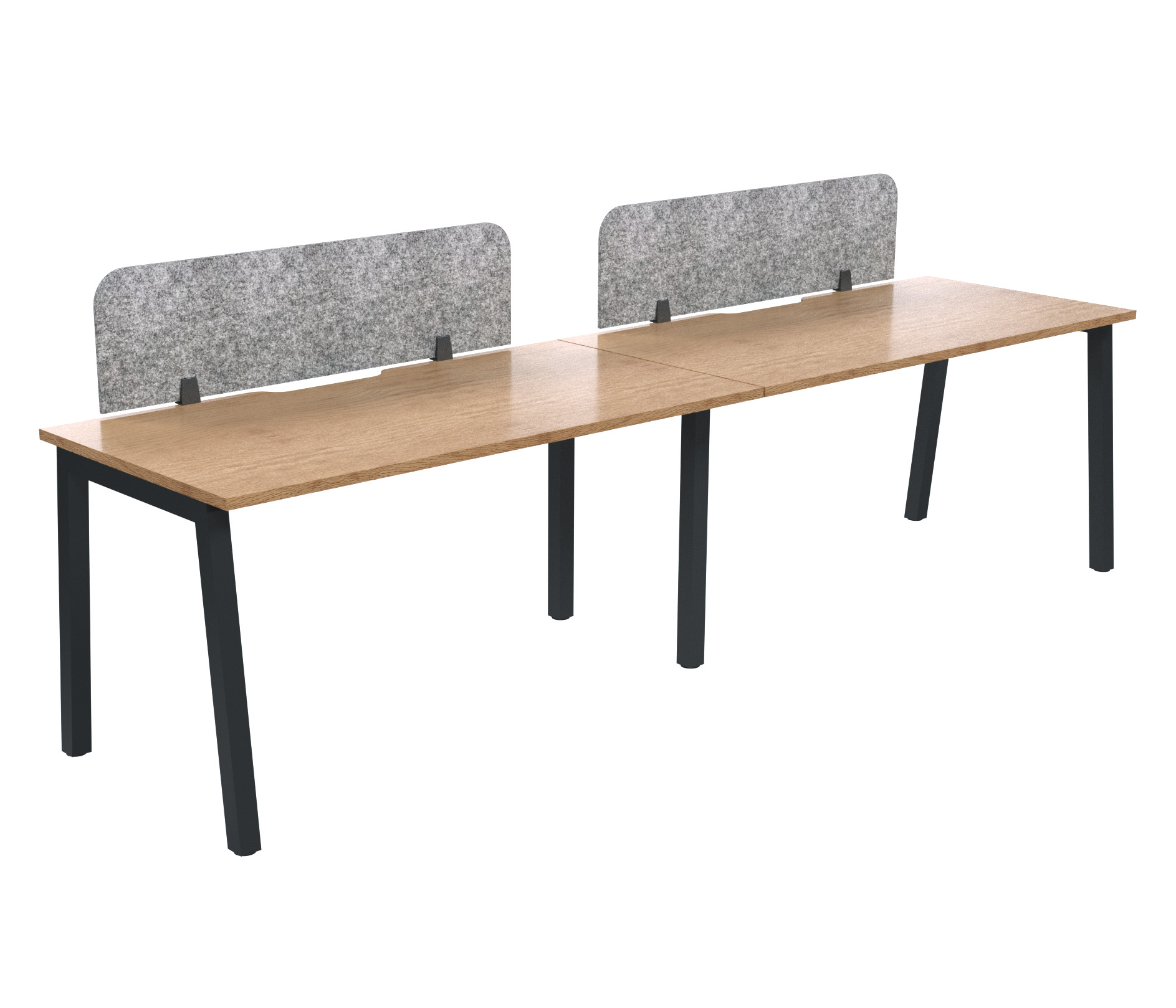

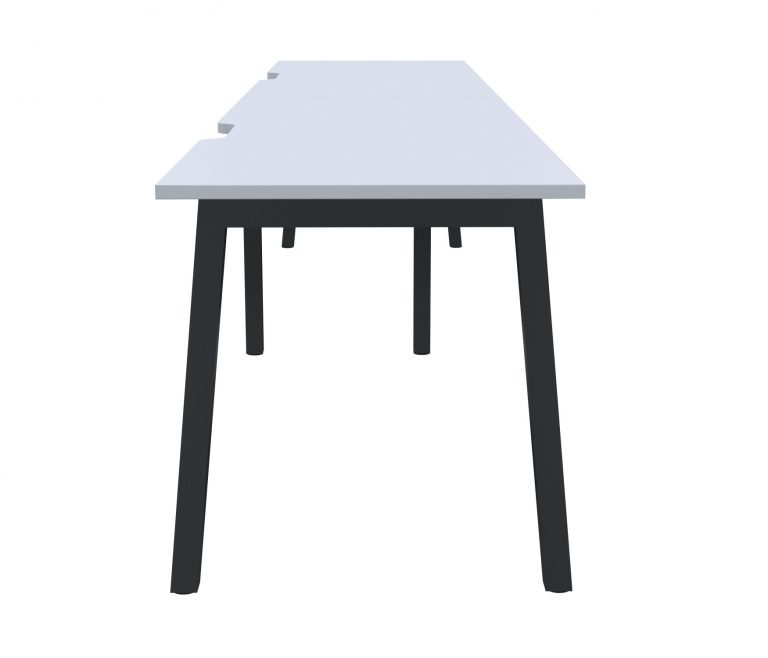

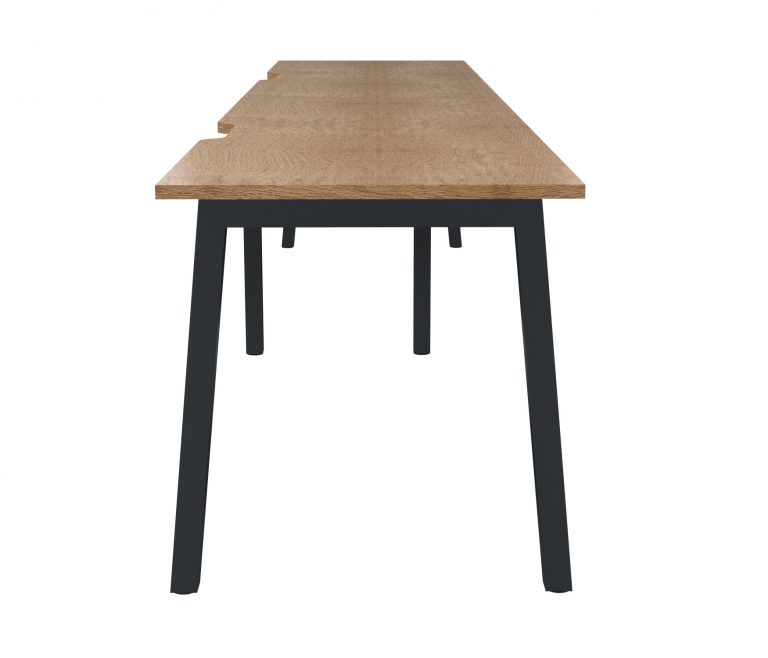

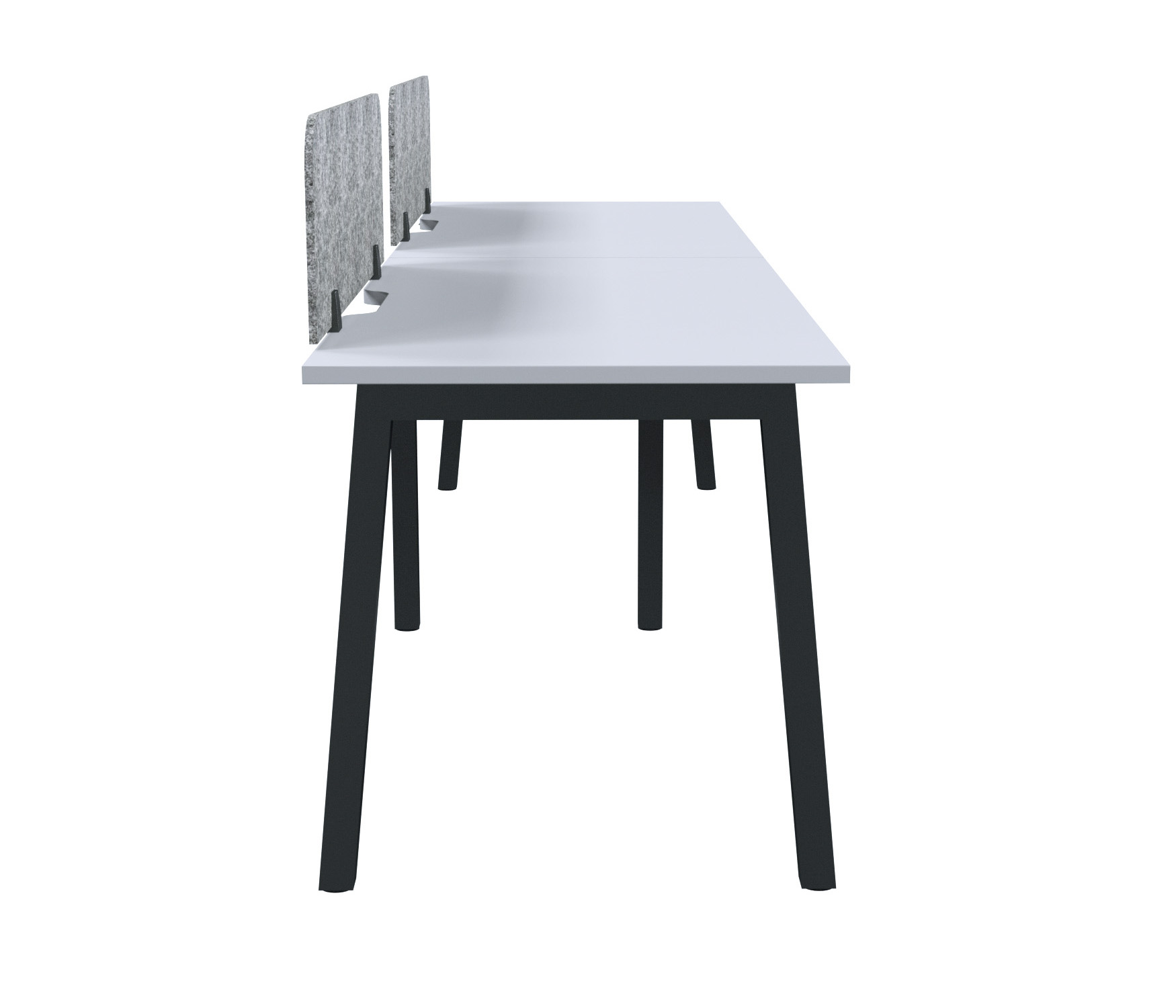

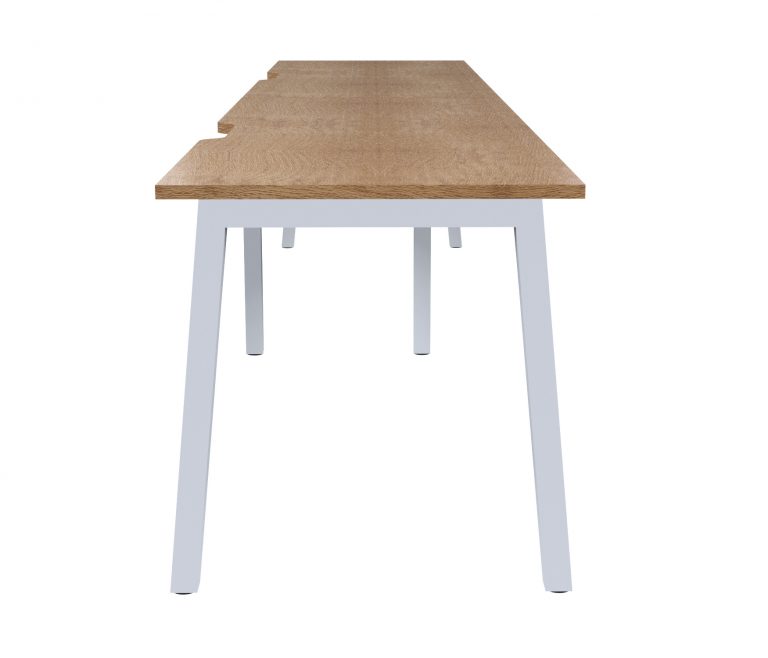

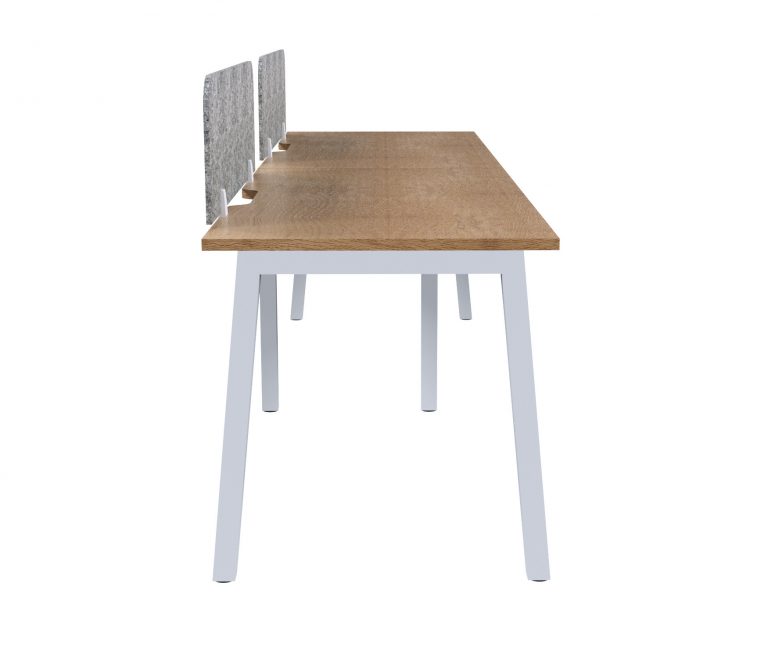

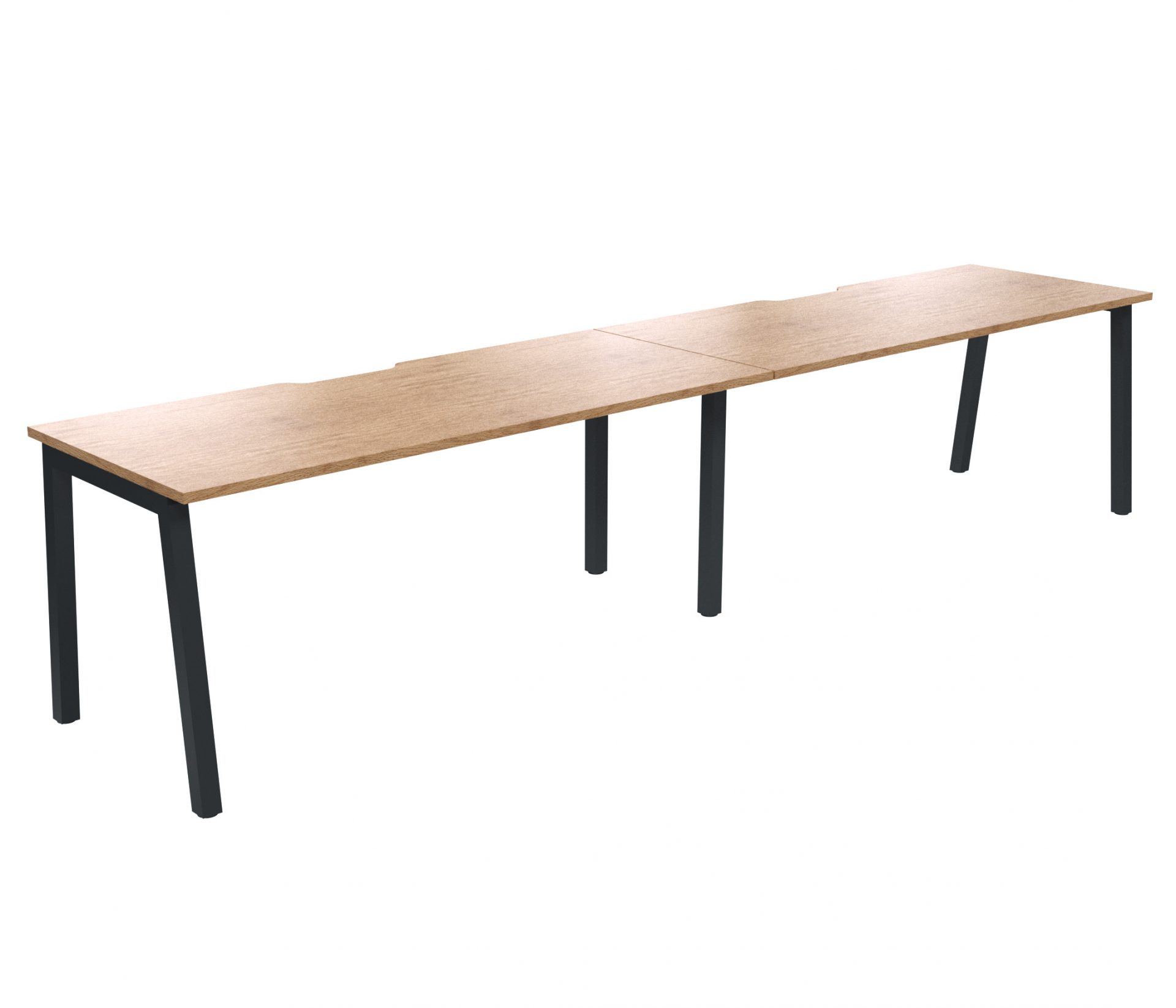

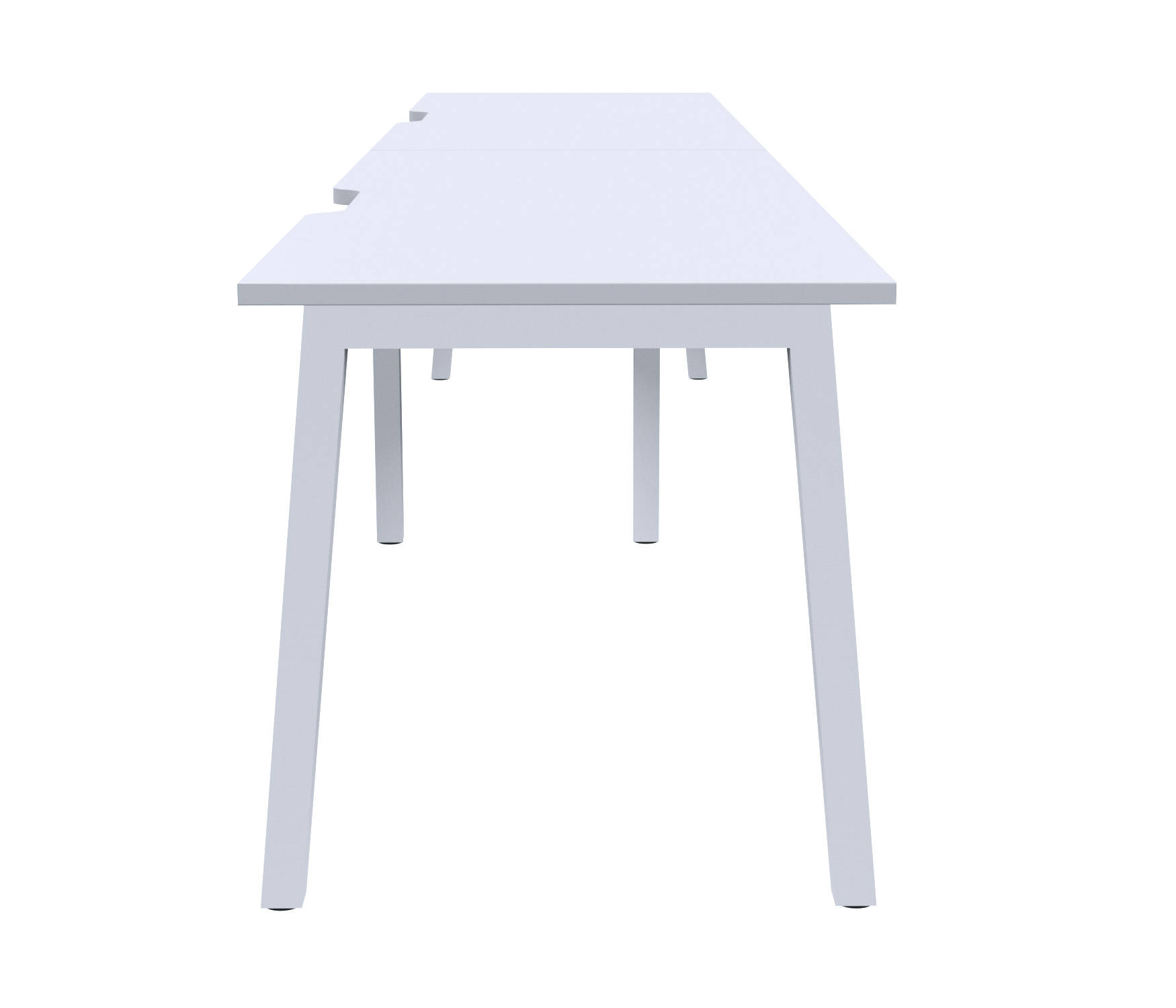

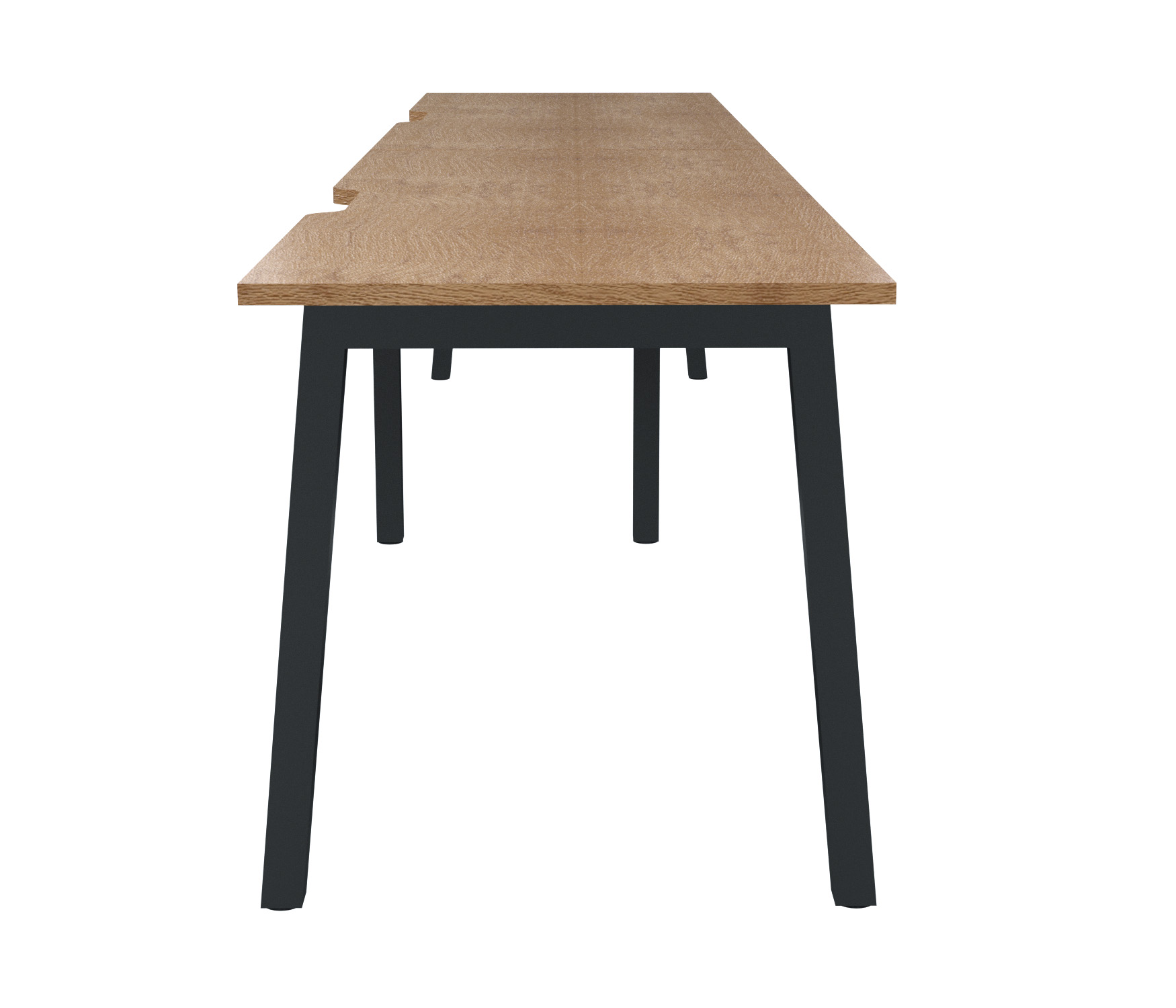

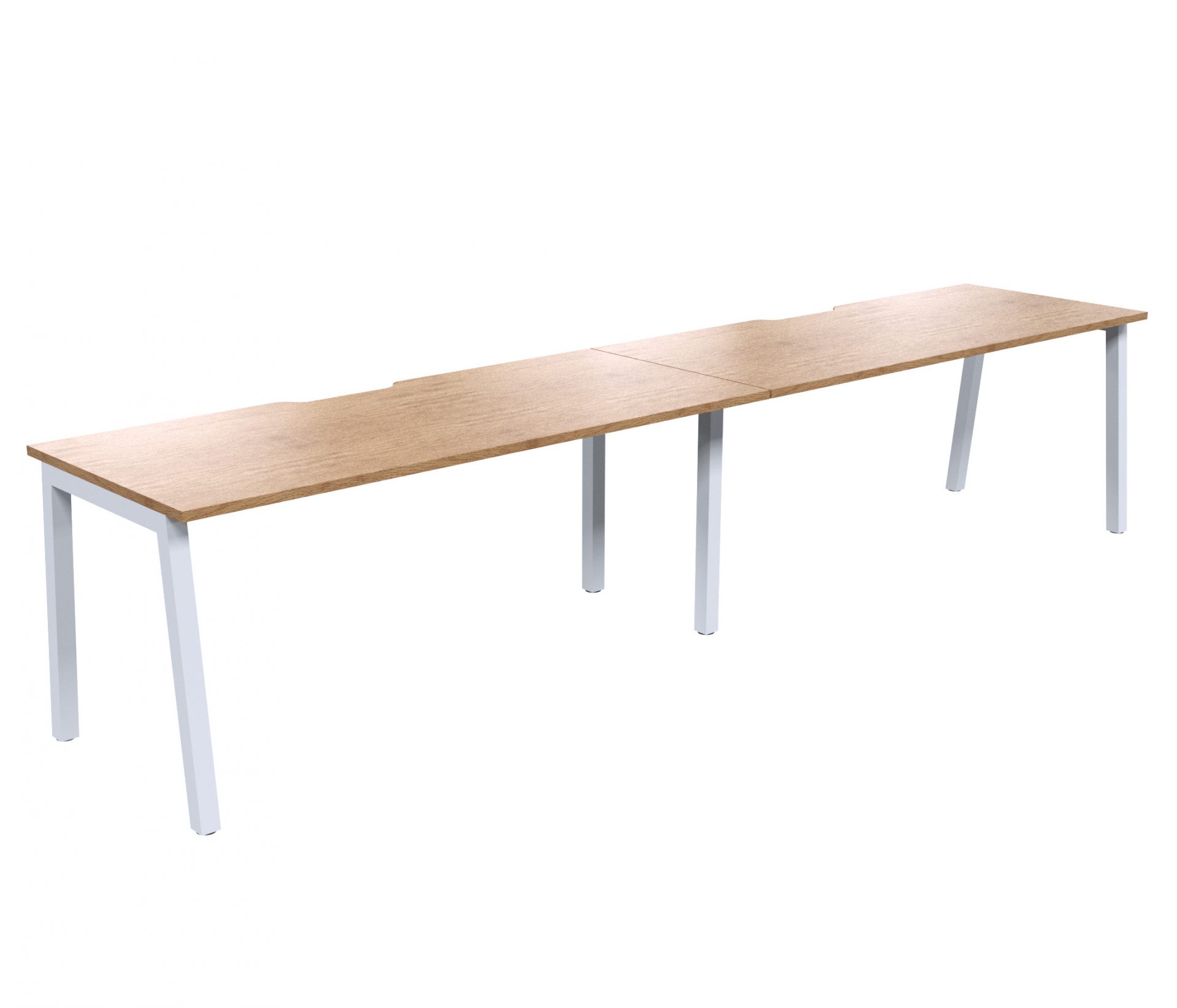

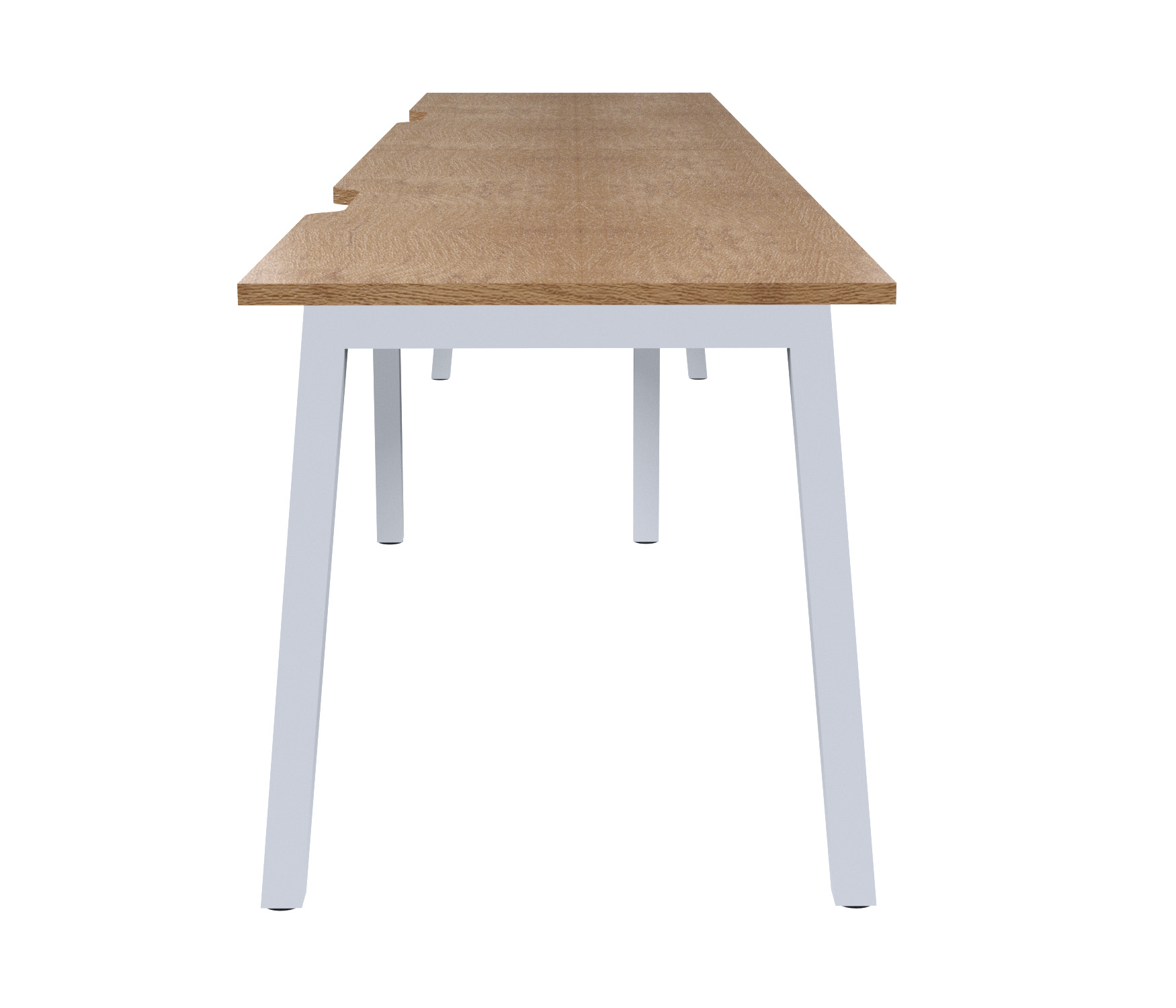

LEAN Single Inline 2 Person

PicturesSpecsheetInstructionsTech SheetTech SheetWarranty
Clear
SKU: N/A Categories: , , Tags: , ,

Features Features

  • Unique angled legs
  • 25mm tops with 1 cable scallop

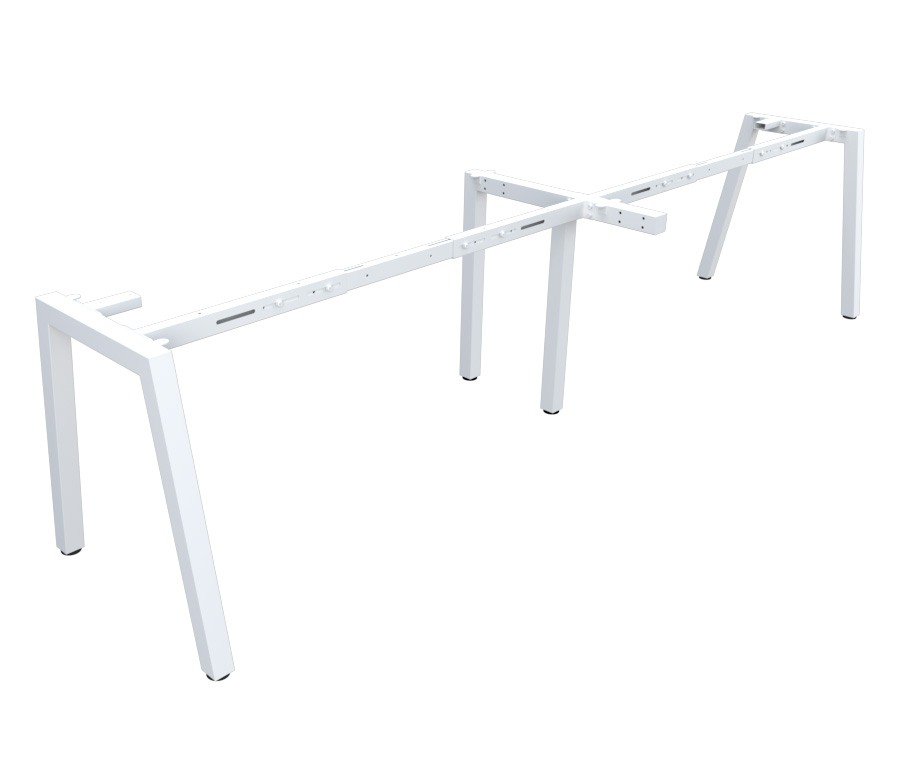

  • 50 x 50 powdercoated Lean frames
  • 1x Adjustable beam per person
  • Recessed shared legs
  • Adjustable feet 30mm
  • 10 Year Warranty

Options Product Options

  • AN-INS127-2: 2 Person 1200L x 750D (2400 x 750 o/a)
  • AN-INS157-2: 2 Person 1500L x 750D (3000 x 750 o/a)
  • AN-INS187-2: 2 Person 1800L x 750D (3600 x 750 o/a)

Dimensions Dimensions

AN-INS127-2 1200 x 750

Assembled: 2400W x 750D x 730H

5 Cartons: 63KG

2x INT1275 – Scalloped Top

1265L x 815W x 45H / 17KG / 0.041m3
(1 pce per ctn)

1x ST-AB1218 – Adjustable Beam

870L x 145W x 125H / 9KG / 0.016m3
(2 pcs per ctn)

1x AN-LE75 – LEAN End Legs

760L x 120W x 720H / 14.2KG / 0.066m3
(2 pcs per ctn)

1x ST-INSS – Single Inline Shared Leg

760L x 90W x 720H / 8KG / 0.049m3
(1 pcs per ctn)

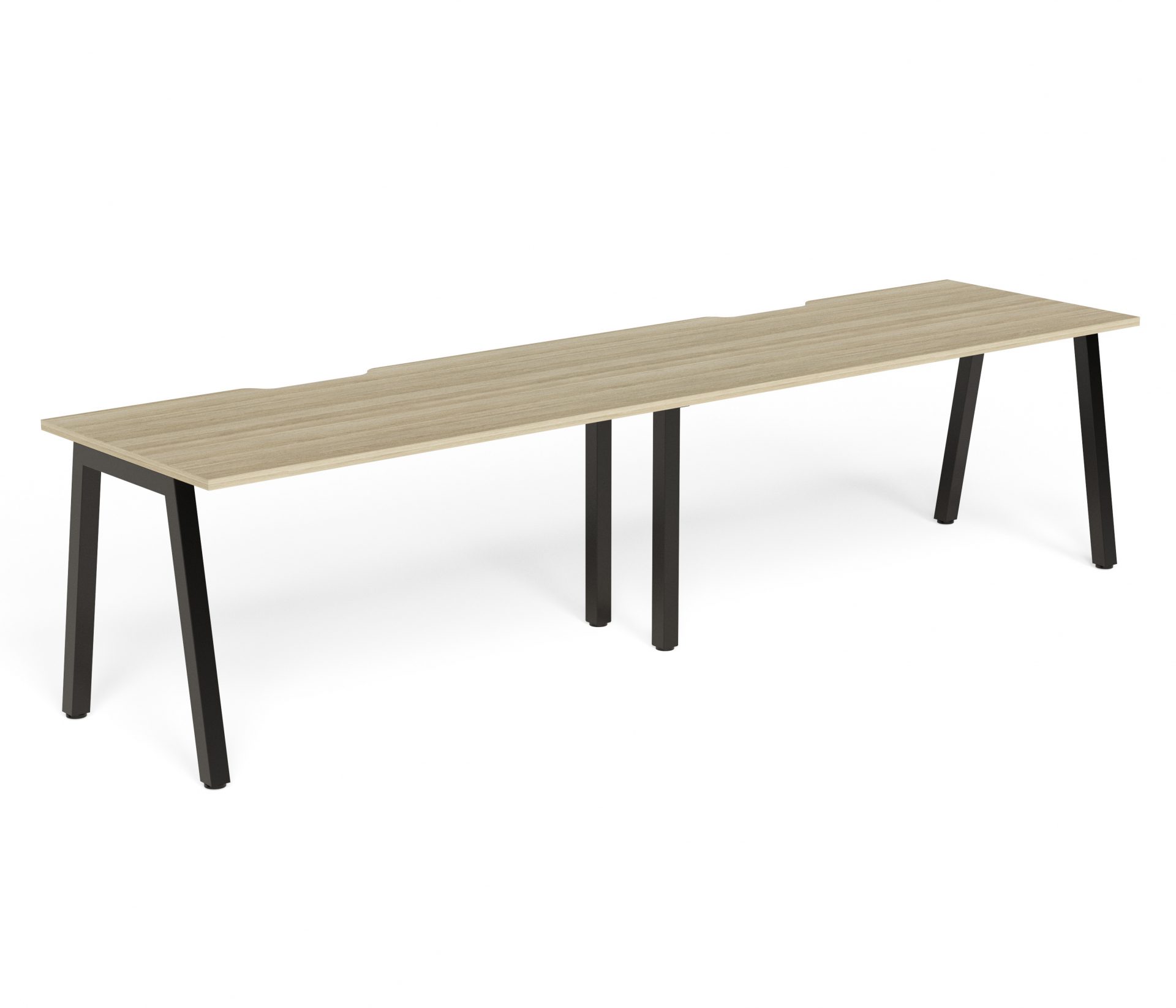

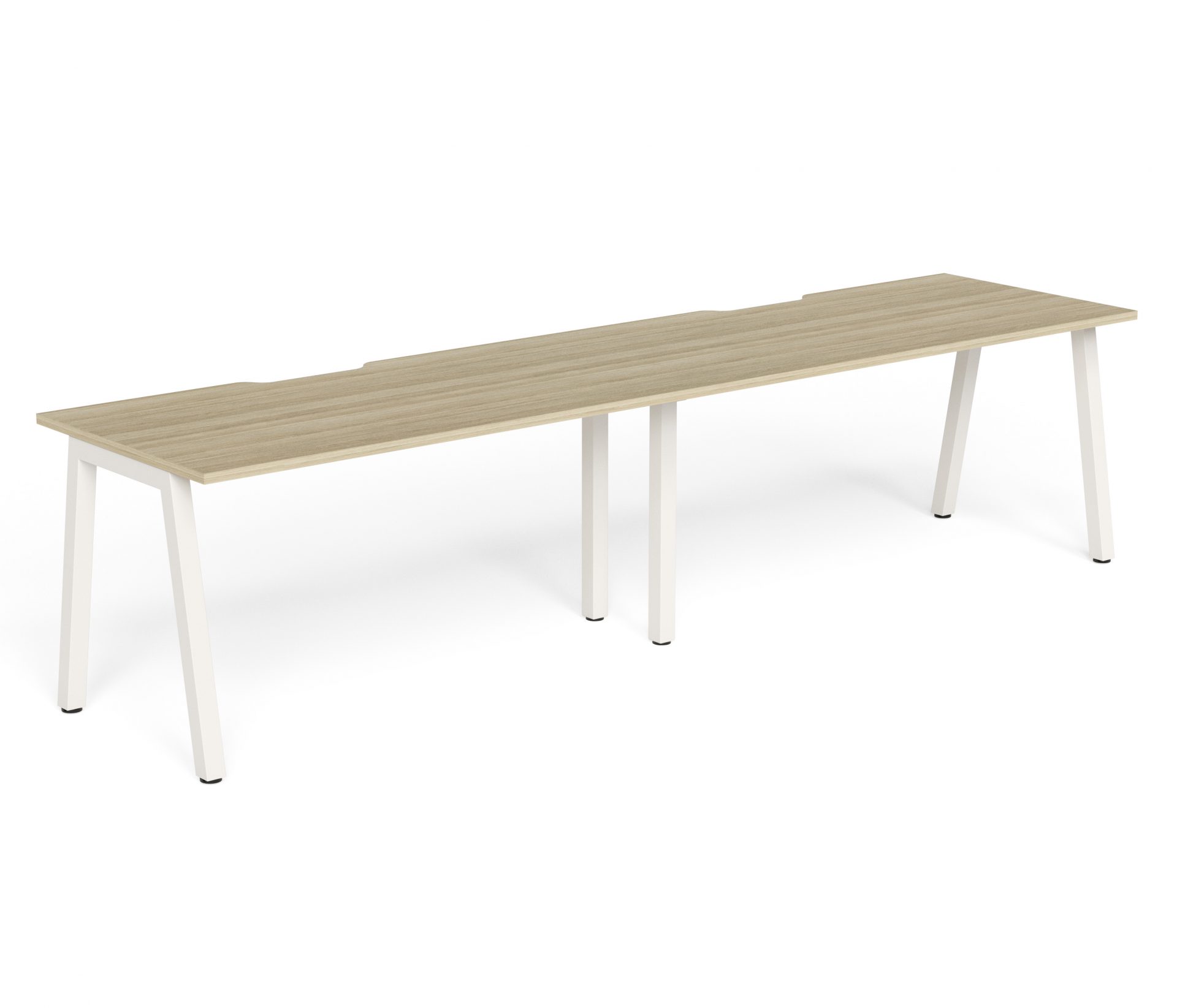

AN-INS157-2 1500 x 750

Assembled: 3000W x 750D x 730H
5 Cartons: 71.35kg

2x INT1575 – Scalloped Top

1550L x 800W x 40H / 20.5KG / 0.050m3
(1 pce per ctn)

1x ST-AB1218 – Adjustable Beam

870L x 145W x 125H / 8.9KG / 0.016m3
(2 pcs per ctn)

1x AN-LE75 – LEAN End Legs

760L x 120W x 720H / 14.2KG / 0.066m3
(2 pcs per ctn)

2x ST-INSS – Single Inline Shared Leg

760L x 90W x 720H / 7.25KG /0.049m3
(1 pcs per ctn)

AN-INS187-2 1800 x 750

Assembled: 3600W x 750D x 730H
5 Cartons: 78.35KG

2x INT1875 – Scalloped Top

1850L x 805W x 30H / 24KG / 0.045m3
(1 pce per ctn)

1x ST-AB1218 – Adjustable Beam

870L x 145W x 125H / 8.9KG / 0.016m3
(2 pcs per ctn)

1x AN-LE75 – LEAN End Legs

760L x 120W x 720H / 14.2KG / 0.066m3
(2 pcs per ctn)

1x ST-INSS – Single Inline Shared Leg

760L x 90W x 720H / 7.25KG /0.049m3
(1 pcs per ctn)
